Vibrating Table

Name: Vibrating Table
Brand: RELIABLE LAB EQUIPMENT CO.
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Vibrating Table Specification

Speed Range
26003600 vibrations/min

Glass Type
N/A

Shape
Rectangular

Power Supply
Single Phase AC

Display Type
N/A

Temperature Resistance
Ambient Laboratory Conditions

Features
Variable Vibration Frequency, Heavy-Duty Construction, Protective Motor Cabinet

Heating Capacity
N/A Ampere

Accuracy
Uniform Compaction Performance pH

Control Type
Manual Speed Regulation Handle

Usage
Concrete Specimen Compaction

Type

Size
Standard Laboratory Model

Dimension (L*W*H)
Approx. 1000 600 900 Millimeter (mm)

Height
900 Millimeter (mm)

Product Type
Vibrating Table

Weight
Approx. 120150 Kilograms (kg)

Equipment Type
Concrete Testing Equipment

Color
Industrial Grey / Blue

Equipment Materials
Mild Steel, Powder-Coated Finish

Length
1000 Millimeter (mm)

Power
0.751 HP Electric Motor Horsepower (HP)

Width
600 Millimeter (mm)

Voltage
220240 V AC, 50 Hz Volt (v)

Material
Mild Steel

Application
Compaction of Concrete Specimens

Warranty
1 year

Capacity (Ltr)
N/A Milliliter (mL)

About Vibrating Table

Vibrating Table for Concrete Compaction

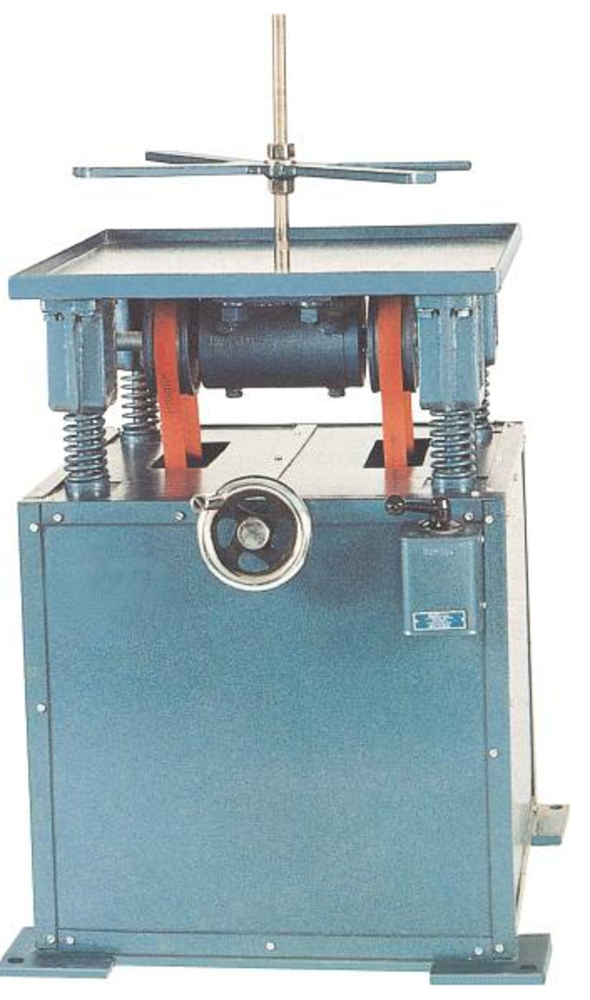

The Vibrating Table is designed for efficient compaction of concrete specimens and is capable of carrying a load of up to 140 kg. The unit consists of a robust table mounted on a sturdy frame, with vibrations generated by eccentric masses rotating on a shaft attached to the underside of the table top.

The apparatus is powered by an electric motor fitted with a variable pitch pulley and housed within a protective cabinet. A speed regulation handle is provided to conveniently adjust the vibration frequency from approximately 2600 to 3600 vibrations per minute, ensuring optimum compaction for different applications.

The
